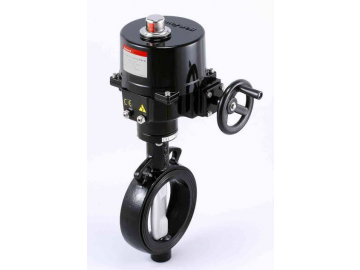

Actuated Wafer type butterfly valves
Specification sheet (English) 下載
Specification sheet (簡體中文) 下載
GENERAL
The V4 Actuated Wafer Type Butterfly Valves are suitable for heating and cooling applications. They can also be employed for industrial applications, general services and water treatment.
The V4 series is equipped with standard On/Off or modulating (4~20mA, 1~5V, or 0(2)~10V select by DIPswitch) control quarter-turn electric actuator.
FEATURES
· Cast Iron (V4) or SUS304 (V7) Wafer Body
· Centric butterfly valve with elastomer liner
· Wide DN-range (DN 50 … DN600)
· For On/Off or Modulating Control
· Robust actuators in epoxy coated aluminum
· Manual override non-clutch design. Manual operation can be operated without any lever, clutch or brake upon power voltage.
· Irreversible worm gear
· Visual mechanical position indicator for accurate visual reference of valve position
· Anti-condensation heater and 2 aux. limit switches on standard model
· Enclosure IP67
SPECIFICATIONS
Valve
| Sizes | DN50 – DN600(Wafer Type) |
| Nominal pressure | PN16 |
| Tightness | Bubble tight |
| Temperature range | -10 ~ 120°C Maximum |
| Body | FCD45 (V4) or SUS304 (V7) |
| Shaft | Stainless Steel, 970 416S21 |
| Disc | Ductile Iron or SUS304 |
| Liner | EPDM |
Actuator
| Motor Voltage | 230VAC, 50 / 60 Hz |
| Travel Angle | 90° ± 5° |
| Input (Modulating) | 4~20mA, 1~5V, or 0(2)~10V select by DIP-switch |
| Enclosure | IP67 Watertight |
| Ambient Temperature | -5 °C to +60 °C |
| Indicator | Continuous Position Indicator |
| Manual Override | Non-clutch design |
| Worm Gear | Permanently lubricated and self locking |
| Mechanical Stops | External Adjustable Limit stops |
| Space heater | 15W 230V Anti-condensation |
| Material | Steel. Aluminum Alloy, Al Bronze |
| External Coating | Anodized and dry powder epoxy |
| Stall Protection | Built-in thermal protection Cut off at 125 ± 5 °C Reset at 95 ± 5 °C |
