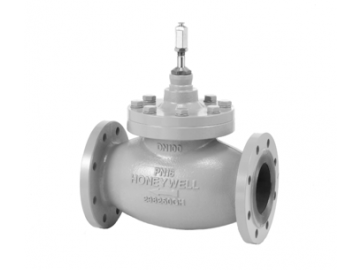

These single seated valves are used for modulating control of hot or chilled water or steam in heating, ventilating and air conditioning systems and can be operated by electric linear actuators as ML6421, ML7421, or by pneumatic actuators MP953.
| Valve type | 2-way press. bal. |
| Materials | body cast iron GG25, trim stainless steel |
| Action to open | stem up |
| Pressure rating | PN16 |
| Port connection | flanges ISO7005 |
| Flow char. | mod.equal% |
| Close off pressure with 1800N motor | 1000 kPa |
| Stroke | 38 mm |
| Media temp. | 2 ... 220 °C |
| Additional description |
Models DN100..150 approved according DIN 32730. |
| 38 mm, application Water | |||
| DN size | Kvs value | Medium type | Type |
| mm | |||
| 100 | 160 | water | V5088A1005 |
| 125 | 250 | water | V5088A1013 |
| 150 | 360 | water | V5088A1021 |
| 38 mm, application Steam (or Water) | |||
| DN size | Kvs value | Medium type | Type |
| mm | |||
| 100 | 160 | steam (water) | V5088A2003 |
| 125 | 250 | steam (water) | V5088A2011 |
| 150 | 360 | steam (water) | V5088A2029 |
