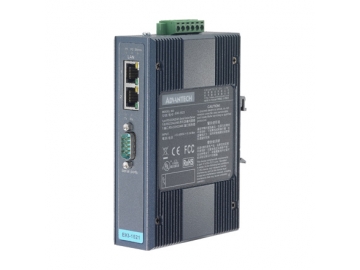

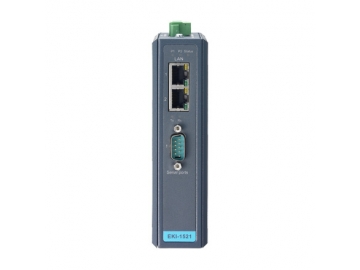

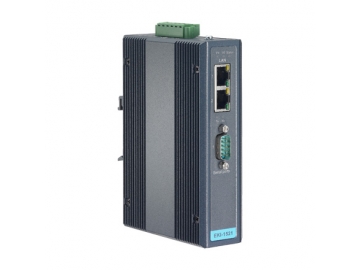

1-port RS-232/422/485 Serial Device Server
EKI-1521 Data sheet 下載
EKI-1521/1522/1524 series Manual 下載
Introduction
EKI-1521, EKI-1522 and EKI-1524 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. EKI-1521, EKI-1522 and EKI-1524 are serial device servers that connect RS-232/422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1521, EKI-1522 and EKI-1524 provide various operations: COM port redirection (Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1521, EKI-1522 and EKI-1524, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI- 1521, EKI-1522 and EKI-1524 ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming.
Features
■Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
■Provides COM port redirection (Virtual COM), TCP and UDP operation modes
■Supports up to 921.6 kbps, and any baud rate setting
■Allows a max. of 5 hosts to access one serial port
■Allows a max. of 16 hosts to be accessed as TCP client mode
■Built-in 15 KV ESD protection for all serial signals
■Provides multiple configuration methods including Windows utility, Telnet console, and Web Browser
■Supports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1, Windows Server 2003/2008/2012, Windows CE 5.0, and Linux
■Automatic RS-485 data flow control
■Supports surge protection for D.C. power ports with line to line 2 KV, and line to earth 4 KV; for signal ports with 4 KV.
■'I' models support a wide operating temperature
■'CI' models support isolation and wide operating temperature
