Product Introduction & Benefits

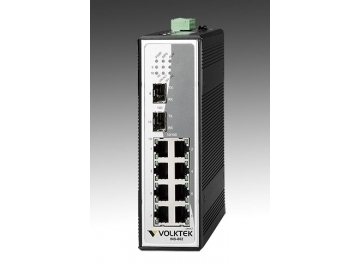

VOLKTEK's INS-802 Series Industrial Switch is an 8-port 10/100Base-TX with Dual 100Base-FX port (Small Form Pluggable (SFP) module optional) switch delivered in a rugged, hardened case and components able to withstand a high degree of vibration and shock and temperatures as high as 70 . Not an ordinary office switch, the INS-802 Switch is engineered and designed especially for harsh, industrial type applications. With it's hardened case, redundant DC power inputs, fiber optic uplinks, and high performance components, the INS-802 is perfectly suited for your industrial automation environment.
Applications:
●Industrial/Factory/Laboratory automation SCADA systems
●Self-service banking systems
●Factory robots and HVAC control systems
●Wafer fabrication systems
●Point of Sale (POS) systems
●Security cameras or other remote distributed serial devices
●Rugged, hardened case and industrial grade components able to withstand extreme vibration/shock.
Main Features:
●8 x 10/100 Mbps ports
●Dual Redundant 100Base-FX ports with SFP type fiber transceivers
●Rugged, hardened IP30 case
●Vibration/Shock operational
●Dual redundant DC power inputs
●Power Terminal Block
●Wide voltage range: 9~48V
●DIP switch to enable or disable alarm functions
●Power input polarity protection function
●Under power & over power detection function
●Operating temperature: 0OC~70OC
